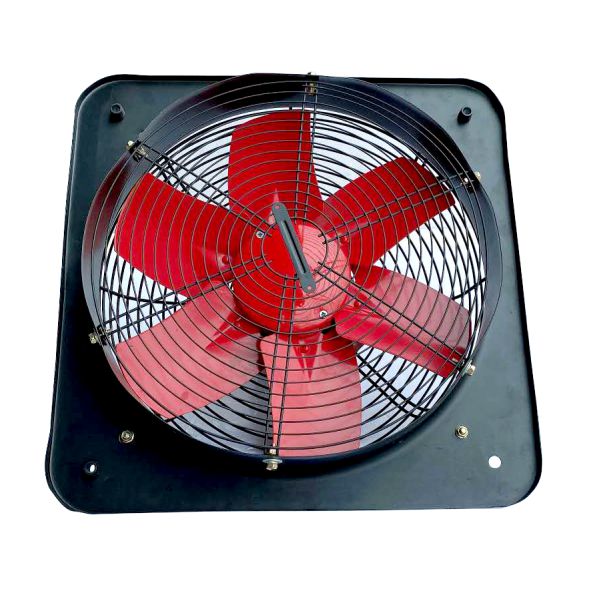

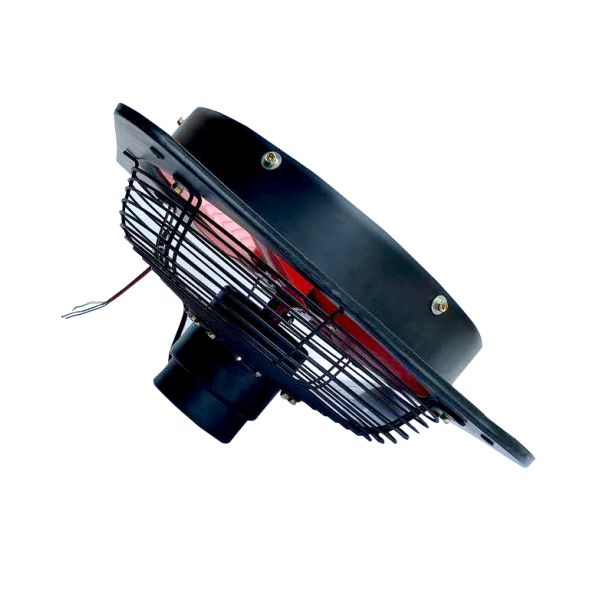

產品展示
PRODUCT
外觀新穎、色澤亮麗
輕巧、方便安裝
CAD輔助設計風葉
風力強勁、運行穩定
適用于工廠、居室、辦公室、酒樓及娛樂場所等作通風之用
12″、14″、16″、20″、24″、5種規格
Novel appearance,beautiful color
Light Weight and easy to install
CAD optimized design blade
Strong air volume,stable operation
Suitable for ventilation in factory,residence,office,hotel
and entertainment place,etc.
12 ", 14", 16 ", 20", 24 ", 5 specifications
產品詳情
|
型號
Model |
電壓
Voltage |
功率
Power |
轉速
Revolution |
風量
Air Volume |
規格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
供應價
Supply price |
風葉價 Wind leaf price (RMB) |
風網價
Net price |
|
FCD/S30-4 |
220/380 |
60 |
1450 |
3000 |
355x355x260 |
4.5 |
0.5 |
220 |
70 |
100 |
|
FCD/S35-4 |
220/380 |
80 |
1450 |
3200 |
410x410x220 |
5.5 |
0.6 |
240 |
80 |
140 |
|
FDC/S40-4 |
220/380 |
180 |
1450 |
4600 |
480x480x280 |
8.5 |
1.1 |
420 |
120 |
180 |
|
FDC/S50-4 |
220/380 |
250 |
1450 |
6000 |
600x600x280 |
13 |
1.5 |
460 |
150 |
210 |
|
FCD/S60-4 |
220/380 |
350 |
1450 |
9800 |
700x700x300 |
14.5 |
1.8 |
620 |
200 |
300 |
